HPG-898 - The Jones Creek

Regular price ~~$1,500.00~~ $1,150.00 On Sale

Choose Your Product Options:

Plan Package * :

Foundation Type * :

Recommended Upgrades :

Materials List (+$ 150.00)Right Reading Reversed (+$ 150.00)Energy Efficient Details Sheet (+$ 35.00)Upgrade to 2 x6" Wall Construction (+$ 150.00)Additional Build License (+$ 250.00)Unlimited Build License (+$ 1000.00)

Additional Sets :

Click the "Add to Cart" button to review your order.

You're making a very smart decision to choose a House Plan Gallery plan!

Bedrooms: 2 / Baths: 2 (in each unit)

Living Sq. Ft.: 898 (in each unit) / 1,796 sq ft (total building size)

Width: 63' - 0" / Depth: 42' - 6" (total building size)

Architectural style(s):
Traditional / Southern / Duplex

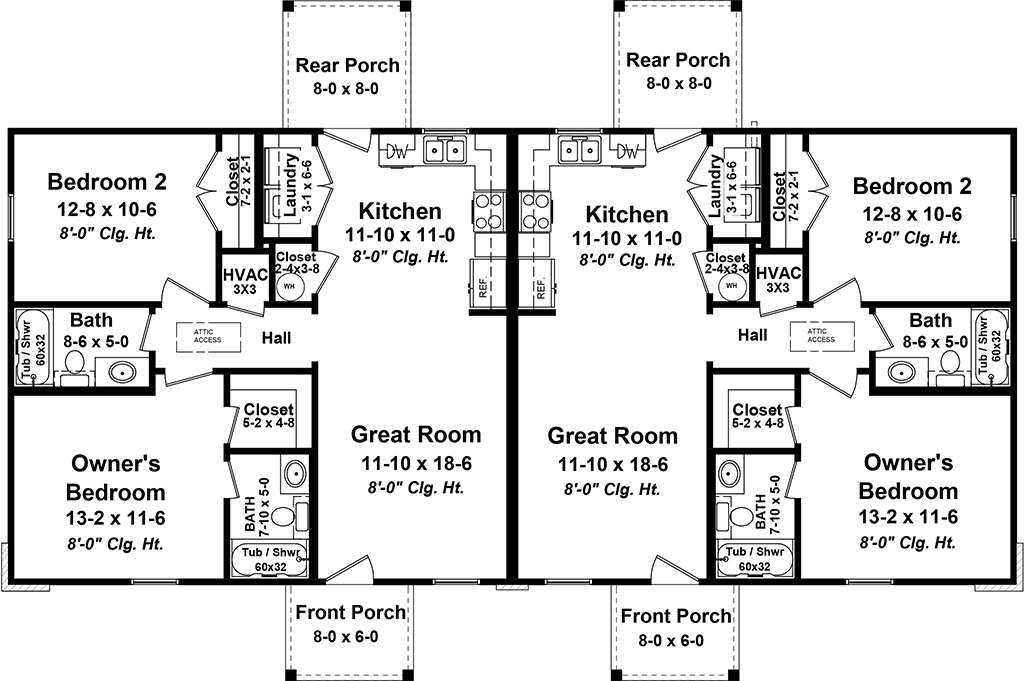

This thoughtfully designed duplex offers 898 living square feet per unit, combining functionality and comfort for modern living. Each unit features two spacious bedrooms, including an owner’s suite with an en-suite bathroom and generous closet space. The second bedroom, located near the full guest bathroom, is perfect for family members, guests, or a home office.

The open-concept great room flows seamlessly into the kitchen, which includes ample counter space and a convenient laundry area nearby. Each unit boasts its own front porch for welcoming guests and a private rear porch ideal for enjoying outdoor living.

The charming exterior design enhances curb appeal, making it ideal for developers or homeowners seeking rental income or multi-generational housing. With efficient use of space and a timeless layout, this duplex is perfect for a variety of lifestyles. Invest in a plan that balances practicality with style, offering comfort and versatility for all.

Foundation Type(s) Available:
Slab / Crawlspace

Levels: 1 Garage: No Wall type: 2x4
Exterior finish: Brick / Siding Bonus Room: No

=======

Designer Comments:
First Floor: 1,796 sq. ft. total (2 units each with 898 sq ft)
Front Porch: 48 sq. ft. (unheated) in each unit.
Rear Porch: 64 sq. ft. (unheated) in each unit.

Looking for other duplex house plans? Checkout these popular duplexes...

All of our house plans include the following:

Cover Sheet Showing architectural rendering of residence

Floor Plan(s) In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.

Foundation Plan and Details Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

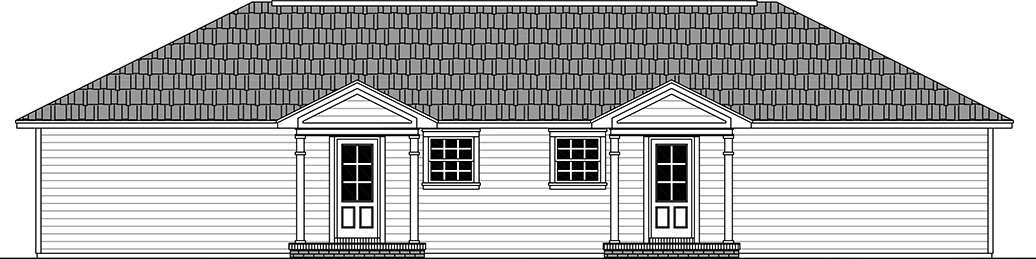

Exterior Elevations In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Single Use License Unless you buy a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold or transferred.

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from House Plan Gallery are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they may/may not only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
