HPG-1002-1: The Sierra

  • Regular price $0.00 $0.00 On Sale

    Click the "Add to Cart" button to review your order.

    You're making a very smart decision to choose a House Plan Gallery plan!


    Bedrooms: 2 / Baths: 2

    Living Sq. Ft.: 1002

    Width: 52' - 0" / Depth: 38' - 4"

    Architectural style(s):
    Country / Traditional / Cape Cod / Ranch

    This design of this house plan includes many of the "most-requested" features, and is a two car garage version of one of our most popular houses. The house plan features 9' ceilings, two large bedrooms, two baths (one with oversized jet tub, and one with tub/shower combination), two raised bars for informal visits with friends and family, a sunroom, separate laundry, linen, pantry, gas logs and plenty of built-ins. These and other features make this a very functional and fun home to live in!

    Foundation Type(s) Available:
    Crawlspace / Slab

    Levels: 1    Garage: Yes       Wall type: 2x4
    Exterior finish:  Siding    Bonus Room:  No

    =======

    Designer Comments:

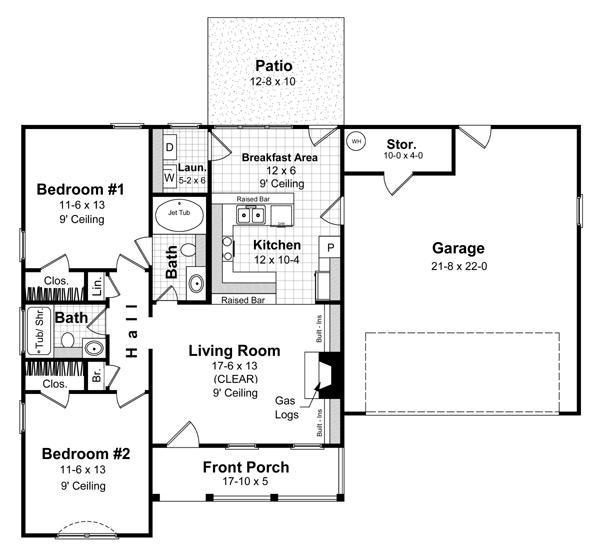

    First Floor: 1002 sq. ft. (living)
    Front Porch: 89 sq. ft. (unheated)
    Garage and Storage: 594 sq. ft. (unheated)


    Check out other 2 bedroom house plans from House Plan Gallery.

    All of our house plans include the following:

    Cover Sheet Showing architectural rendering of residence

    Floor Plan(s) In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.

    Foundation Plan and Details Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

    Roof Drainage Plan In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

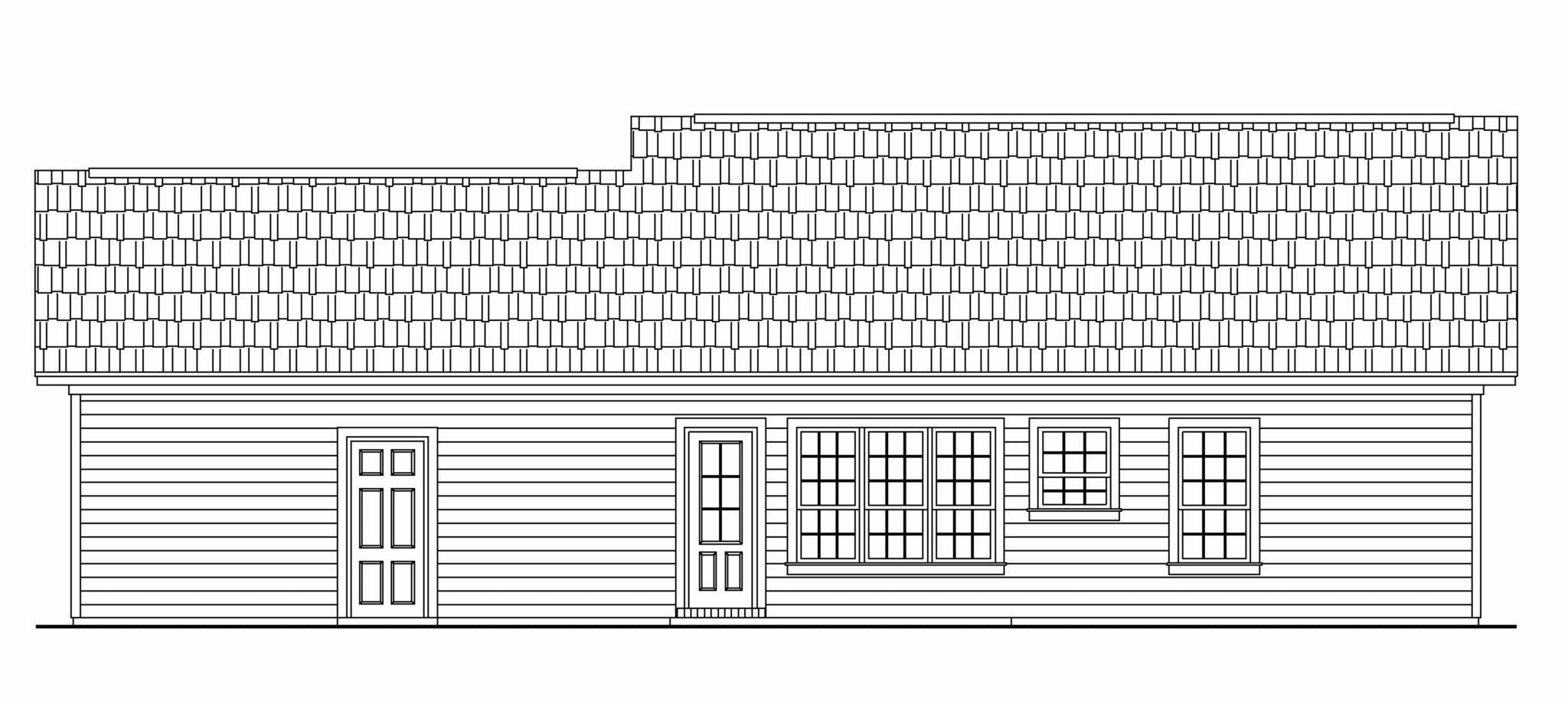

    Exterior Elevations In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

    Interior Elevations Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

    Single Use License Unless you buy a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold or transferred.

    We can modify this house plan to fit your EXACT needs!

    To get started, we can provide you with a 100% FREE No-Obligation modifications quote.

    Just click on the link below to fill out our quick & easy online form and let us know exactly what modifications you'd like done, and we'll email over your free quote within 1-2 business days!

    Get started by CLICKING HERE
